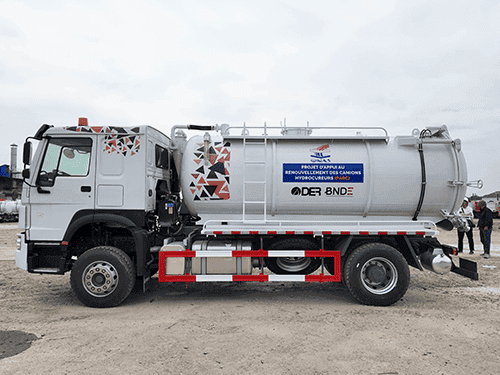

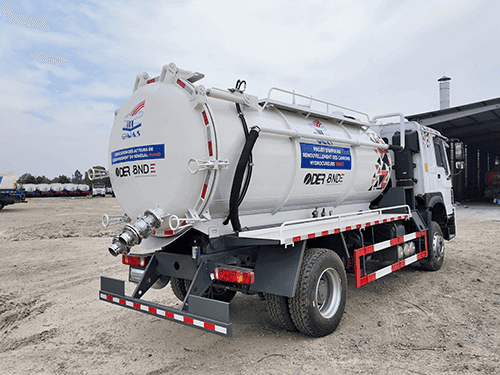

VACUUM SEWER TANK TRUCK

A Vacuum Sewer Tank Truck is a specialized sanitation vehicle designed for the suction, collection, transportation, and disposal of sewage, sludge, and other liquid or semi-liquid waste. It uses a powerful vacuum pump system to create strong negative pressure, allowing waste to be efficiently extracted from sewer lines, septic tanks, manholes, and drainage systems.

Models:


Model:	ZZ1257V4647B1
Drive type:	6X4 Left Hand Drive
Wheel base (mm):	4600+1350
Engine model:	WP10.340E, 340HP EURO II
Engine model:		4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
Engine model:	WP10.340E, 340HP EURO II
Engine model:		4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
Power output:	340HP
Torque output:	1250N.m

Products Showcases:

Application

The Vacuum Sewer Tank Truck is engineered to deliver powerful, reliable, and efficient performance in sewer cleaning, wastewater extraction, and liquid waste transport. Its advanced suction and storage systems make it indispensable for sanitation, municipal infrastructure maintenance, and environmental services.

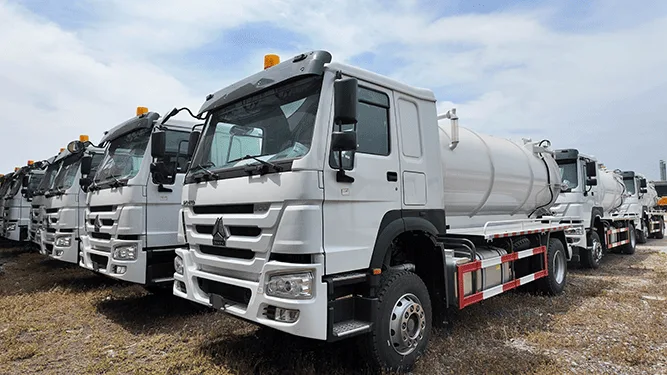

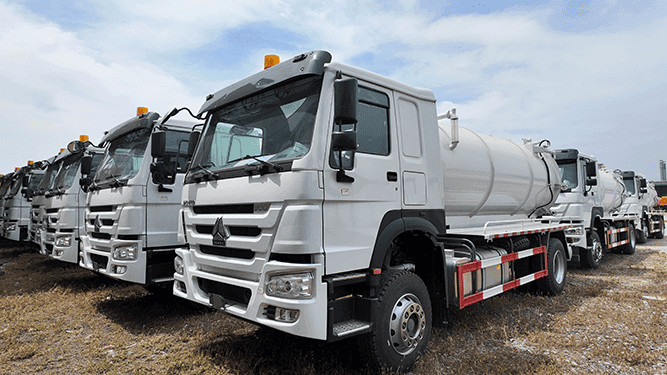

VACUUM SEWER TANK TRUCK-26

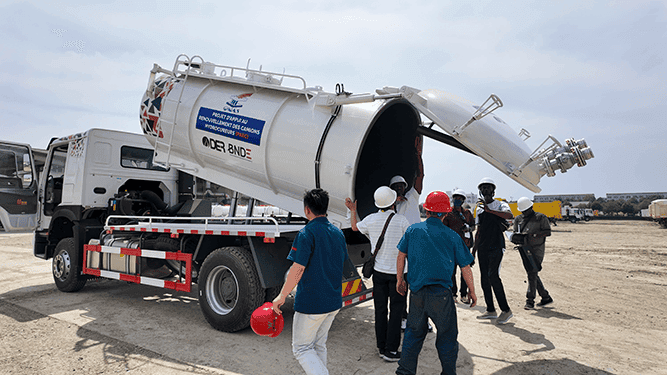

VACUUM SEWER TANK TRUCK-25

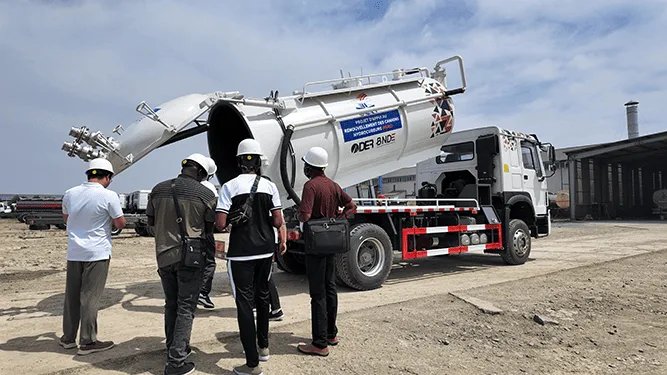

VACUUM SEWER TANK TRUCK-24

Specifications:


Specifications for VACUUM SEWER TANK TRUCK
Chassis	Model	ZZ1167N4617B1
		Wheelbase	4600mm
		Driving model	4X2, left hand drive
		Engine	WP300.E22, 300HP, EU Ⅱ
		Transmission	HW19710, 10 forward & 2 reverse, with PTO;
		Front axle	7100KG
		Rear axle	16000KG
		Fuel tank	400L
		Tire	295/80R22.5 tire, in total 7 pieces including one spare tire
Sewage Tank	Capacity	10000 liters
		Material	Q235B, 6mm
		Internal support partition	Wave structure, fully welded with web plate, skirt structure at the bottom, size over 500mm.
		Rear sealing	Double flange design, flange thickness 30mm (increases depending on volume), weather-resistant rubber sealing ring.
		diversion trough	The brim is curved and deepened to prevent drips from falling onto the vehicle.
		Locking method	New brass-plated manual locking
		Sewage tank inlet	No side suction port; a high-level feed port is added to the rear end cap; specification: DN100; control method: manual.
		Sewage tank discharge port	Standard configuration: One DN150 low-position discharge port, located at the low position of the rear end cap.
		View sewage pipe	Quantity: 1 piece; Material: Acrylic glass;
		Ladder	A ladder is welded to one side of the operating valve.
		Storage rack/box	Quantity: 2 / Installation location: one on each side of the tank (equal in length to the tank) to be determined, ordinary carbon steel
		sewage suction pipe	Quantity: 1 piece; Length: 6 meters
Vacuum pump system	power take-off	With PTO
		Transmission mode	PTO drive shaft
		Brand	Italy pump JUPOR PN106
		pump base	Made with thickened material
		Vacuum pump table	One pressure gauge with positive and negative scales, and one side of the four-way valve of the vacuum pump.
		Positive and negative pressure safety valves	Domestic
Hydraulic control components	Tank Lifting	Both sides of the tank are raised
		Rear end cap opening and closing	Fully open/close
		Control method	Multi-way valve manual lever
		gear pump	Brand: Hefei Wanye
Process requirements	Internal tank processing	Epoxy resin anti-corrosion coating
Process requirements		Welding requirements	Three-dimensional gas shielded welding is used to ensure uniform and smooth welds, strong and reliable welds, and the absence of cracks, slag inclusions, burn-through, and incomplete welds, preventing water leakage and seepage.
Other requirements	protective device	Protective railings are installed on both sides and the rear of the tank; Material: Q235B carbon steel Rear mudguard: Metal mudguard, material: Q235B carbon steel
Other requirements		Lighting fixtures and signage	Side lights: Three side marker lights are installed along the lower edge of one side of the tank. The wiring harnesses for these lights must be sealed and secured, and must not be exposed. Reflective strips: These are affixed to the sides and rear of the vehicle, consisting of alternating red and white markings. The reflective strips should clearly indicate the width and length of the vehicle.


Specifications for VACUUM SEWER TANK TRUCK
Chassis	Model	ZZ1167N4617B1
		Wheelbase	4600mm
		Driving model	4X2, left hand drive
		Engine	WP300.E22, 300HP, EU Ⅱ
		Transmission	HW19710, 10 forward & 2 reverse, with PTO;
		Front axle	7100KG
		Rear axle	16000KG
		Fuel tank	400L
		Tire	295/80R22.5 tire, in total 7 pieces including one spare tire
Sewage Tank	Capacity	10000 liters
		Material	Q235B, 6mm
		Internal support partition	Wave structure, fully welded with web plate, skirt structure at the bottom, size over 500mm.
		Rear sealing	Double flange design, flange thickness 30mm (increases depending on volume), weather-resistant rubber sealing ring.
		diversion trough	The brim is curved and deepened to prevent drips from falling onto the vehicle.
		Locking method	New brass-plated manual locking
		Sewage tank inlet	No side suction port; a high-level feed port is added to the rear end cap; specification: DN100; control method: manual.
		Sewage tank discharge port	Standard configuration: One DN150 low-position discharge port, located at the low position of the rear end cap.
		View sewage pipe	Quantity: 1 piece; Material: Acrylic glass;
		Ladder	A ladder is welded to one side of the operating valve.
		Storage rack/box	Quantity: 2 / Installation location: one on each side of the tank (equal in length to the tank) to be determined, ordinary carbon steel
		sewage suction pipe	Quantity: 1 piece; Length: 6 meters
Vacuum pump system	power take-off	With PTO
		Transmission mode	PTO drive shaft
		Brand	Italy pump JUPOR PN106
		pump base	Made with thickened material
		Vacuum pump table	One pressure gauge with positive and negative scales, and one side of the four-way valve of the vacuum pump.
		Positive and negative pressure safety valves	Domestic
Hydraulic control components	Tank Lifting	Both sides of the tank are raised
		Rear end cap opening and closing	Fully open/close
		Control method	Multi-way valve manual lever
		gear pump	Brand: Hefei Wanye
Process requirements	Internal tank processing	Epoxy resin anti-corrosion coating
Process requirements		Welding requirements	Three-dimensional gas shielded welding is used to ensure uniform and smooth welds, strong and reliable welds, and the absence of cracks, slag inclusions, burn-through, and incomplete welds, preventing water leakage and seepage.
Other requirements	protective device	Protective railings are installed on both sides and the rear of the tank; Material: Q235B carbon steel Rear mudguard: Metal mudguard, material: Q235B carbon steel
Other requirements		Lighting fixtures and signage	Side lights: Three side marker lights are installed along the lower edge of one side of the tank. The wiring harnesses for these lights must be sealed and secured, and must not be exposed. Reflective strips: These are affixed to the sides and rear of the vehicle, consisting of alternating red and white markings. The reflective strips should clearly indicate the width and length of the vehicle.

Feature:

1. High-Performance Vacuum Suction System
Equipped with a powerful vacuum pump and sealed suction mechanism that creates strong negative pressure for rapid extraction of sewage, sludge, wastewater, and semi-solid materials from sewer lines, septic tanks, manholes, and drains. This system enables efficient and thorough cleaning in complex urban networks.

VACUUM SEWER TANK TRUCK-17

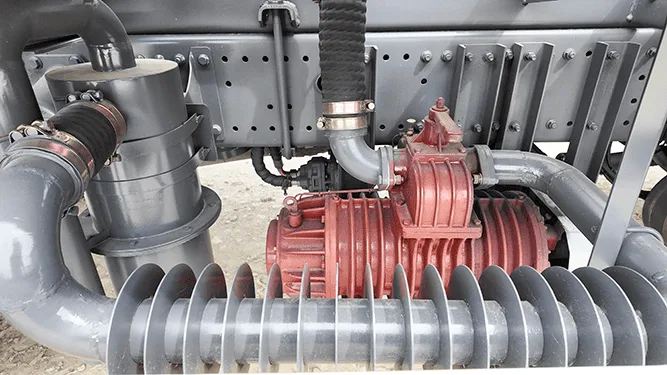

VACUUM SEWER TANK TRUCK-16

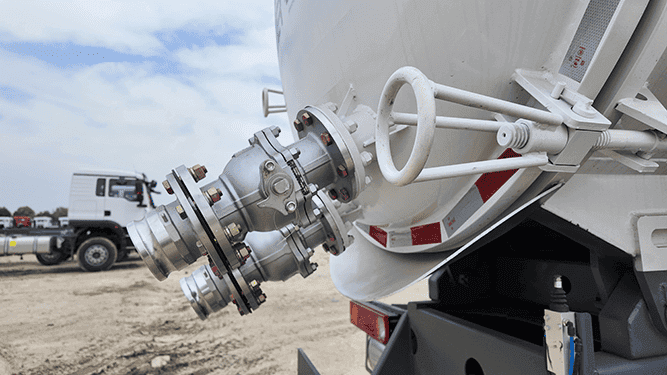

VACUUM SEWER TANK TRUCK-15

2. Large Sealed Storage Tank
The truck features a large, airtight tank designed to securely hold collected waste without leakage or odor escape during transport — enhancing sanitation and environmental protection.

VACUUM SEWER TANK TRUCK-22

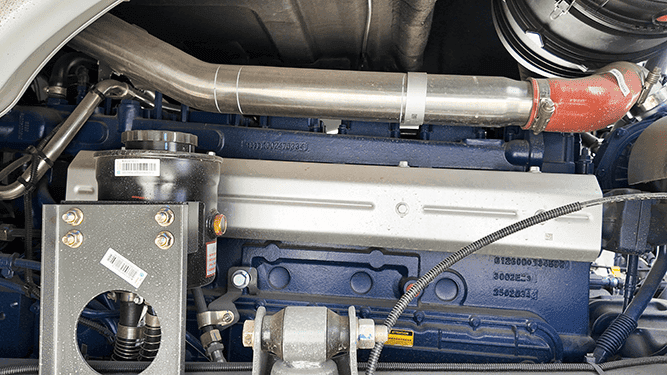

VACUUM SEWER TANK TRUCK-21

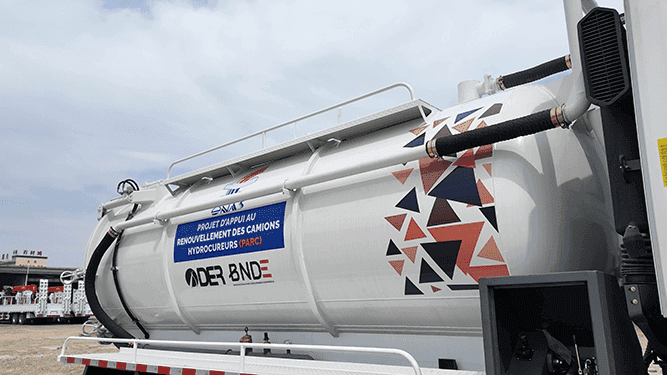

VACUUM SEWER TANK TRUCK-20

3. Self-Priming & Fast Fill Capability
Advanced design allows self-priming suction and quick filling of the tank — some models can fill a full tank in under 5 minutes — providing high work cycle efficiency.

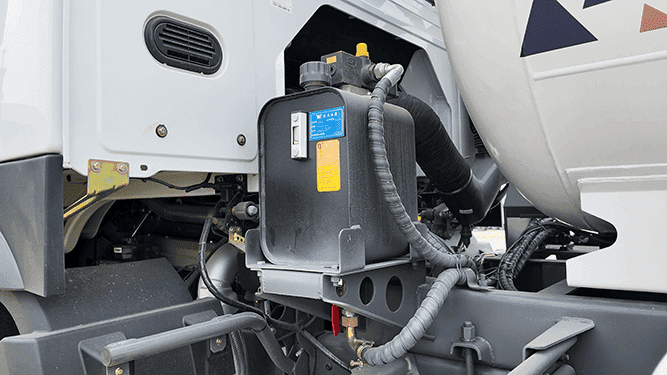

VACUUM SEWER TANK TRUCK-13

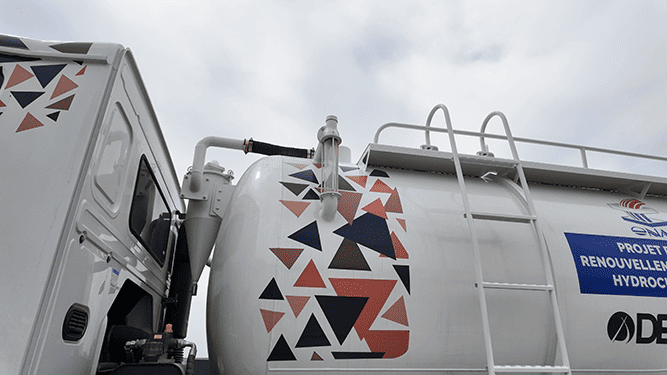

VACUUM SEWER TANK TRUCK-12

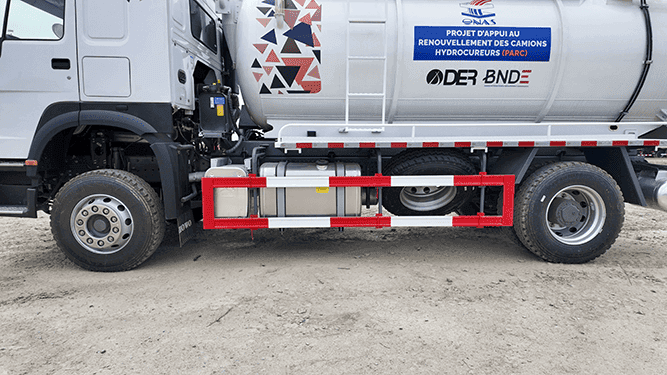

VACUUM SEWER TANK TRUCK-11

4. Anti-Overflow Safety Device
Integrated anti-overflow and backflow prevention systems help protect the vacuum pump and hydraulic components, ensuring safer and more reliable operation.

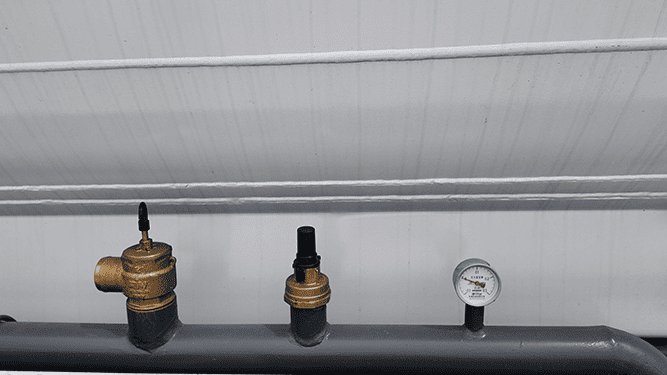

VACUUM SEWER TANK TRUCK-17

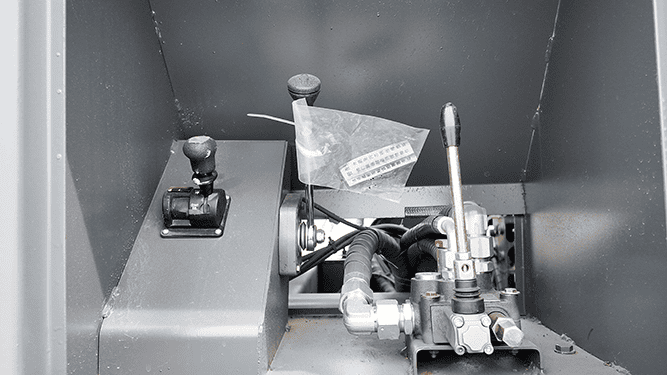

VACUUM SEWER TANK TRUCK-18

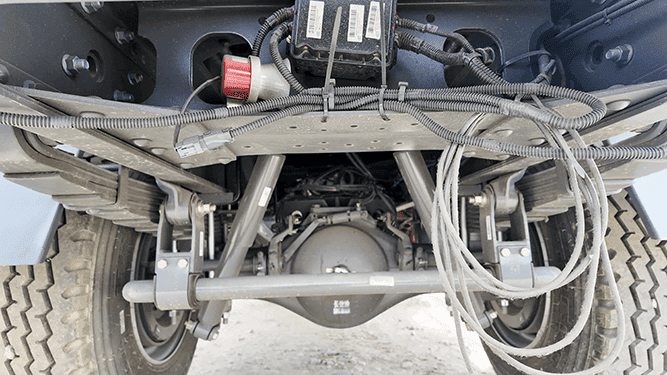

VACUUM SEWER TANK TRUCK-22

5. Hydraulic Tank Lifting and Discharge
Many vacuum sewer tank trucks support hydraulic tilting of the tank and rear door opening, enabling smooth and controlled discharge of waste at treatment sites.

VACUUM SEWER TANK TRUCK-16

VACUUM SEWER TANK TRUCK-15

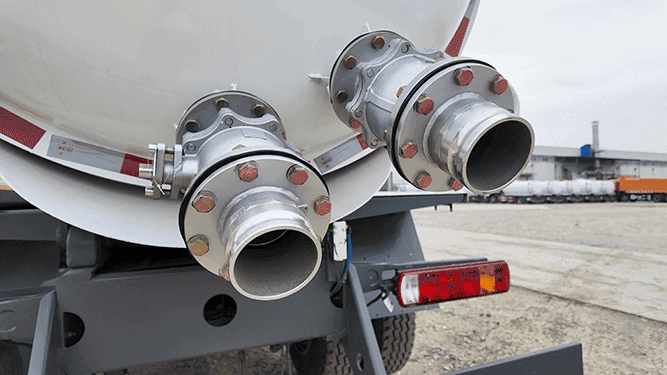

VACUUM SEWER TANK TRUCK-14
