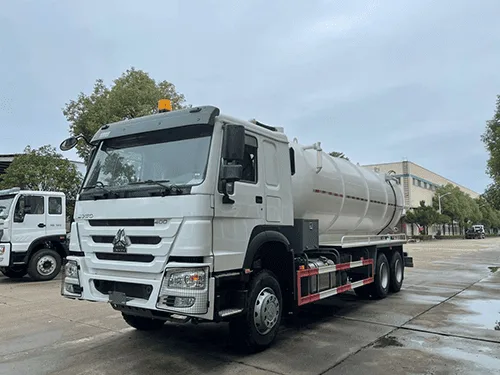

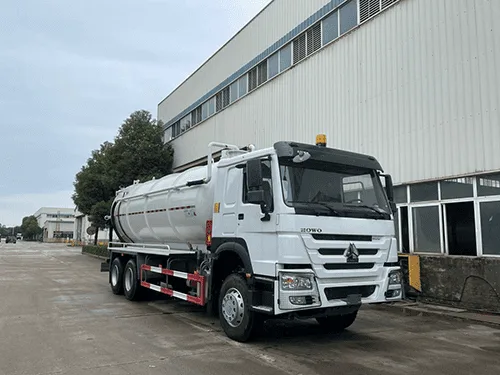

| Name | Standard configuration |
| ♦ Model: | ZZ1257V5247B1 |
| ♦ Drive type: | 6X4 Left Hand Drive |
| ♦ Wheel base (mm): | 5200+1350 |
| ♦ Cab type: | Forward control over engine, all-steel-welded construction, tilting cab; rear points airbag suspensions. |
| Heating and ventilating system with A/C. |
| ♦ Engine model: | WP12.400E201, 400HP EURO II |
| 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
| ♦ Power output: | 400HP |
| ♦ Torque output: | 1780N.m |
| ♦ Emission (ml) | 11596CC |
| ♦ Brakes: | Dual independent circuit fully pneumatic with automatic slack adjusters, Spring loaded hand brake |
| ♦ Transmission gear: | HW19710 gear box with 10 forward and 2 reverse |
| ♦ Front axle: | Drum brake 9000kg |
| ♦ Rear axle: | Drum brake, 16000kg*2 |
| ♦ Clutch ( mm): | Reinforced diaphragm clutch, diameter 430 mm |
| ♦ Fuel tank (L): | 400 |
| ♦ Tyre: | 315/80R22.5 tubeless tires,11 pcs including 1 spare tire |
| ♦ Dimension (mm) | 10300x2600x3800(mm) |
| ♦ Gross Vehicle Weight:(kg) | 25000 |
| ♦ Kerb Weight:(kg) | 14500 |
| ♦ Maximum Speed:(km/h) | 90 |
| B. Vacuum Tank | |
| Name | Standard configuration |
| ♦ Tank volume | 20,000 Liters |
| ♦ Material: | Carbon steel |
| ♦ Shell Body: | 6 mm nominal thickness |
| ♦ End Plate | 6 mm nominal thickness |
| ♦ Baffle Plate | 6 mm nominal thickness |
| ♦ Tank shape: | Ellipse |
| ♦ Compartment: | One compartment |
| (multi-compartment are available) |
| ♦ Strengthen ring: | Cool blended U shape. Add the strengthen ring on the tank out circle. |
| ♦ Tipping hydraulic: | For convenient tipping at 45 degree angle, one heavy tipping hydraulic pump is fixed. |
| ♦ Shell Finish: | Shot blasted with 1 anti rust, 1 base coat and 1 finishing coat, the color of tank is according to customer requirement. |
| ♦ Safety support | fix with safety valve during working |

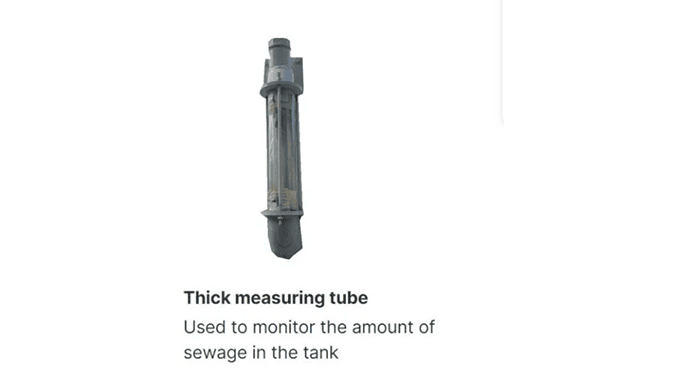

| ♦ Lever detector | Fix one lever detector on the rear of the tank for clearing the sullage. |
| ♦ Over Pressure device | Fixed on the top of the tank |
| ♦ Vacuum valve | For keeping the tank's inside vacuum |

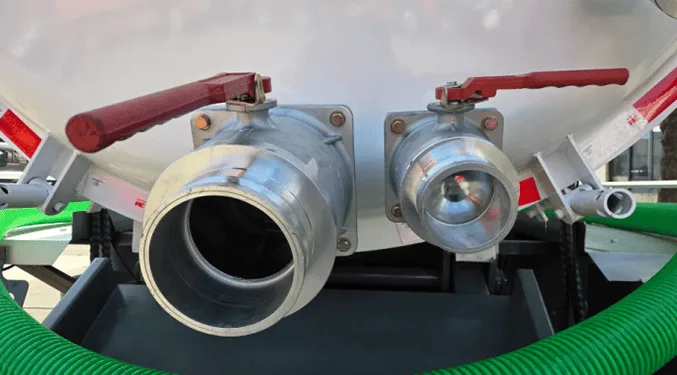

| ♦ Sewage discharge valve | The stainless steel discharge valve is fixed on the rear used for keeping the tank's rear clean |
| Name | Standard configuration |

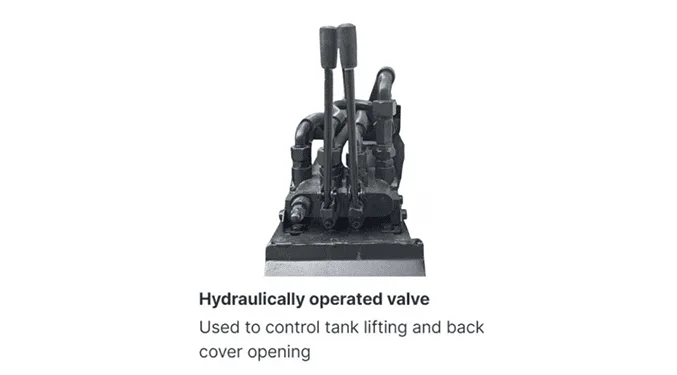

| ♦ Operation: | Opened by hydraulic |
| ♦ Safety: | Automatic testing hydraulic valve |
| ♦ Lock device: | Manual locking device |
| ♦ Seal: | Rigidity and manual synthetic rubber seal rings |
| ♦ Water discharge valve | one way 100mm ball valve |
| C. Rear Cover: | |

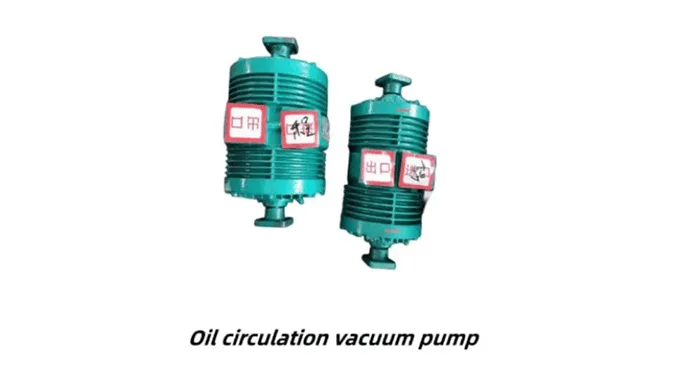

| Vacuum Pump system | Standard configuration |
| ♦ Model: | Famous Chinese brand |
| ♦ Max vacuum: | ≥-0.098Mpa |
| ♦ pumping rate | 300 m3/h |
| ♦ Speed: | 1500 r/mm |
| ♦ Driving Power approximately | 15 KW |
| Suction Pipeline system | Standard configuration |
| ♦ Diameter: | 100mm(4”) |
| ♦ Material | PVC spire strengthen hose |
| ♦ Accessories | 4” single way valve |
| ♦ PIPING work | All the pipe are fixed on the top, even when the tank is tipping, it is still able to work |
| D. Vacuum Pump and Suction Pipeline: | |
| Name | Standard configuration |
| ♦ Control | Provide all easy control system |
| ♦ Assembly | All the controlling devices and where to be fixed are all confirmed |
| after we talked with our customers |
| ♦ Control | All the control devices are in one water proof box. |
| ♦ Marks | Make clear marks on the necessary places of the whole truck |
| E. Control: | |
| Name | Standard configuration |
| ♦ Outside Sandblasting | all the steel and stainless steel parts are sandblasted before painting |
| ♦ Painting | Primer and final painting |
| ♦ Logo | paint customer's logo |
| ♦ Training | Two free day training in our factory |
| ♦ Others tools | Hydraulic jack with wheel wrench |
| F. Painting & Traning: | |
| Name | Standard configuration |
| ♦ Outside Sandblasting | all the steel and stainless steel parts are sandblasted before painting |
| ♦ Painting | Primer and final painting |
| ♦ Logo | paint customer's logo |
| ♦ Training | Two free day training in our factory |
| ♦ Others tools | Hydraulic jack with wheel wrench |
