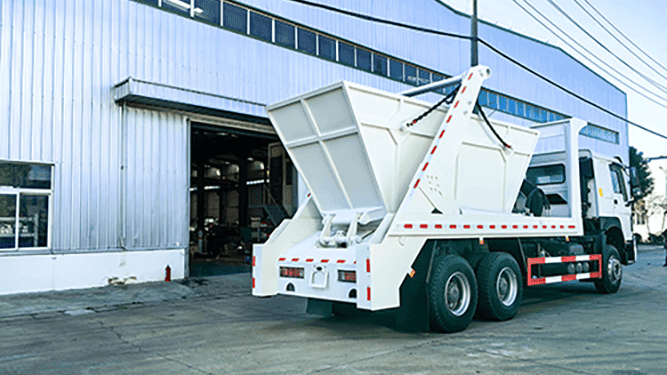

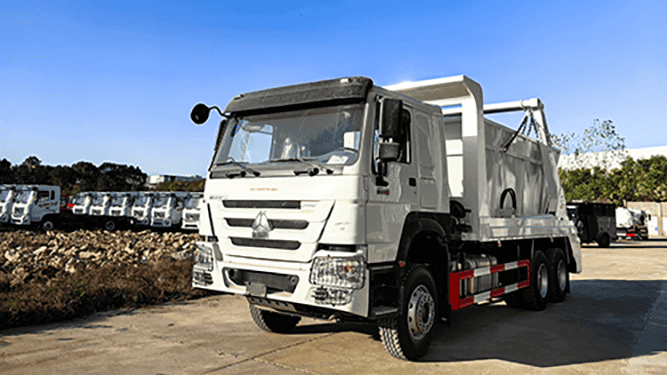

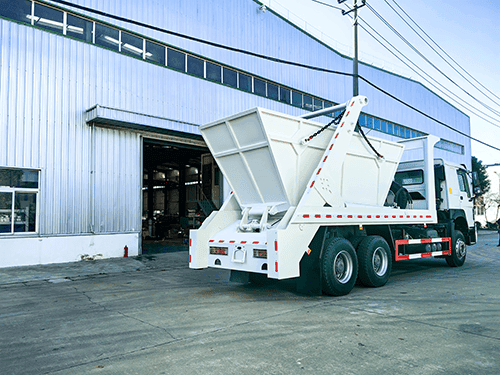

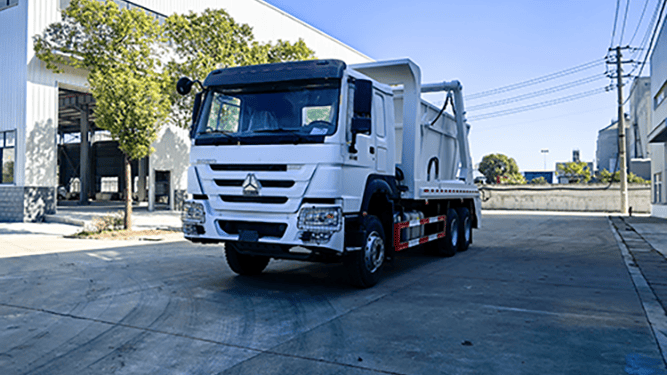

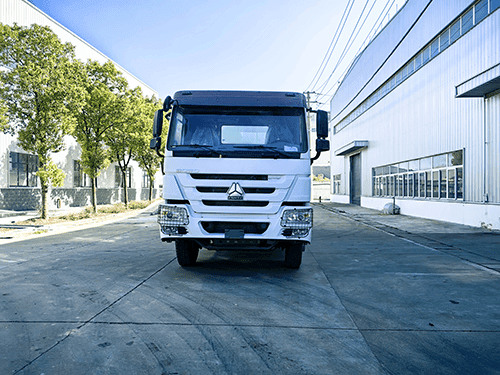

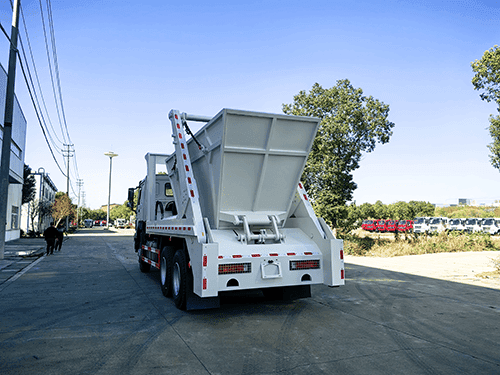

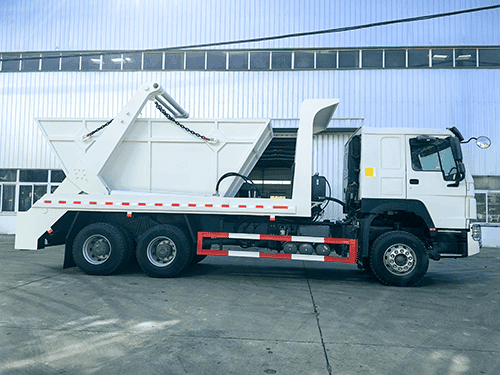

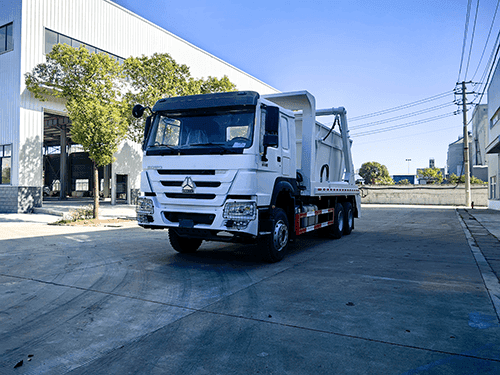

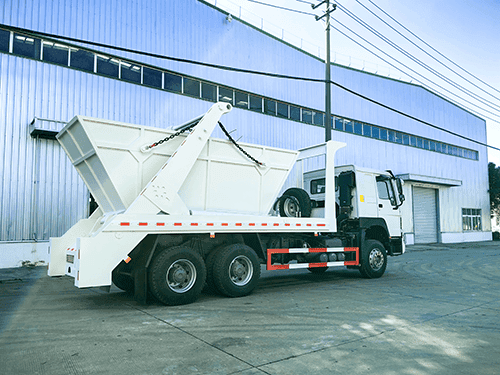

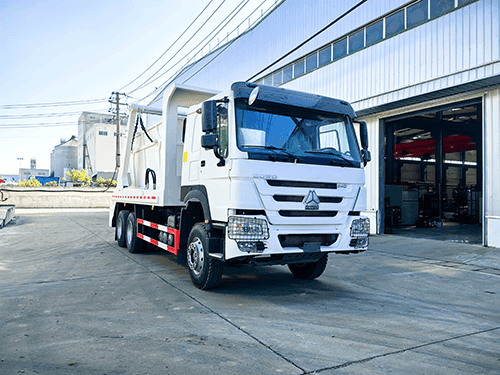

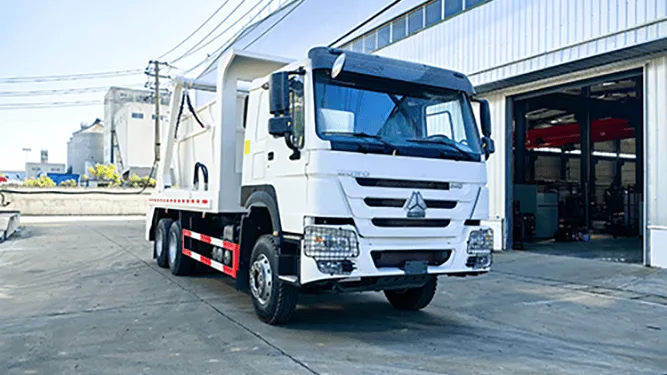

The Hydraulic Swing Arm Garbage Truck is a specialised piece of equipment designed for efficient sanitation operations in modern cities and communities. Based on a proven and reliable commercial vehicle chassis platform, this model integrates a high-performance hydraulic swing-arm system. Its core value lies in enabling rapid grabbing, transfer and tipping of refuse containers, achieving short single-cycle operation times that significantly enhance turnover efficiency at collection points. The vehicle is specifically optimised for municipal sanitation, concentrated residential areas, and township streets. Its compact overall design and excellent manoeuvrability demonstrate outstanding adaptability in narrow lanes and high-frequency collection tasks.
The Hydraulic Swing Arm Garbage Truck is a high-reliability design, the operational system employs high-quality hydraulic components and multi-way valves for precise control, ensuring smooth and accurate movements. The superstructure and waste bins undergo electrophoretic primer and anti-corrosion coating treatments, delivering outstanding durability to withstand prolonged, high-load operational environments. By selecting standard waste bins of varying capacities, it flexibly supports a “one vehicle, multiple bins” cyclical collection model. This substantially increases the service coverage per trip and operational economy, offering a professional solution for building an efficient, reliable sanitation collection system.

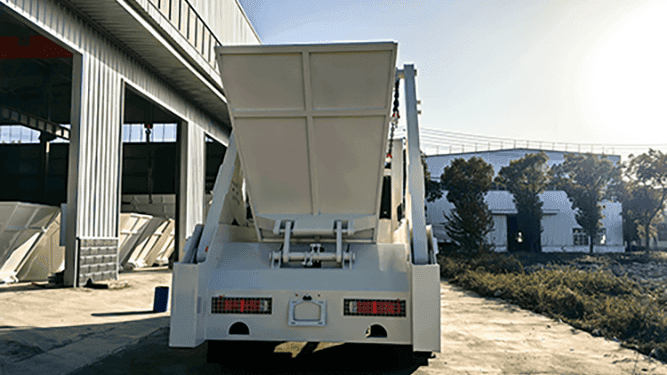

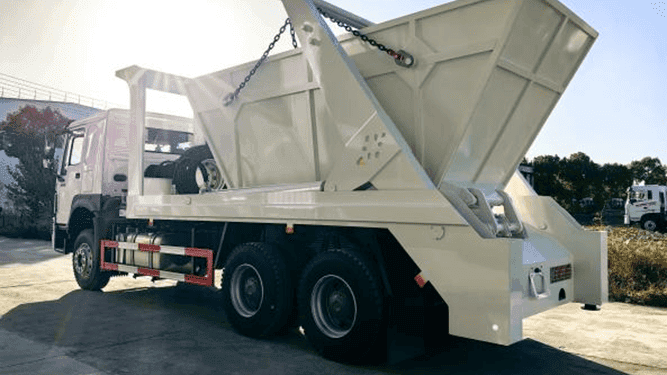

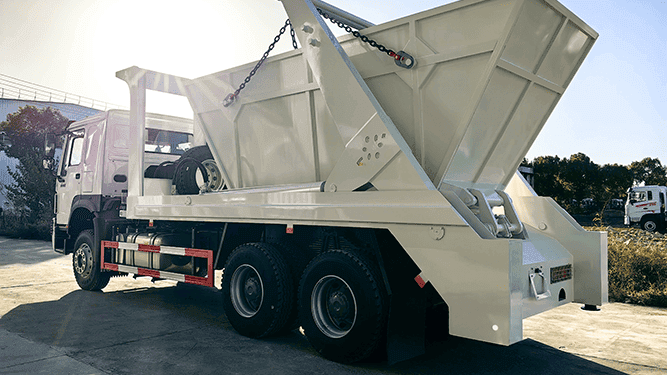

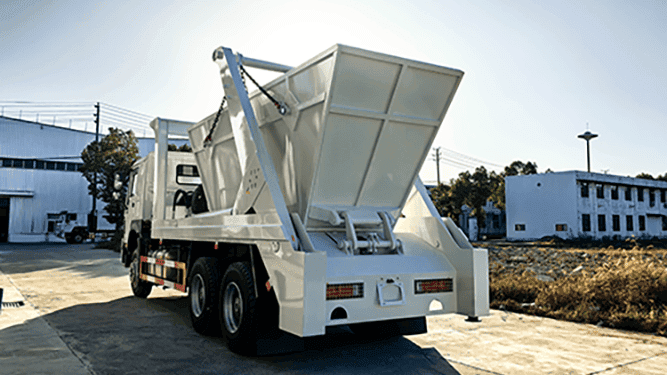

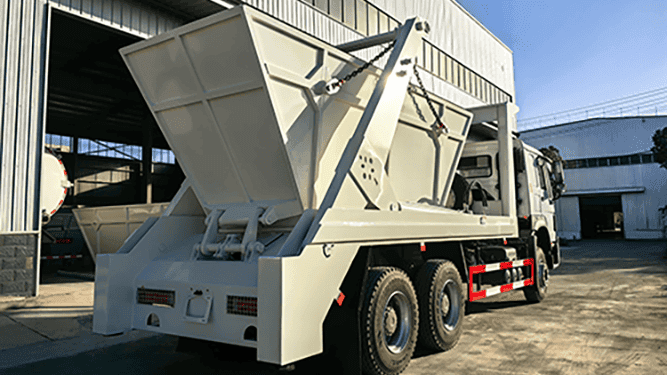

1.Swing Arm:The swing arm functions as the vehicle’s automated loading and unloading mechanism. Hydraulically powered, it performs the complete cycle of grasping, lifting, tipping, and returning the refuse container. This design allows for quick container attachment and release, enabling efficient single-operator use and significantly improving the mechanization and productivity of collection operations.

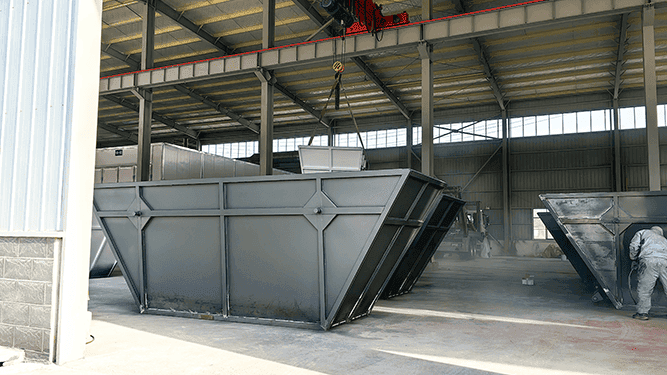

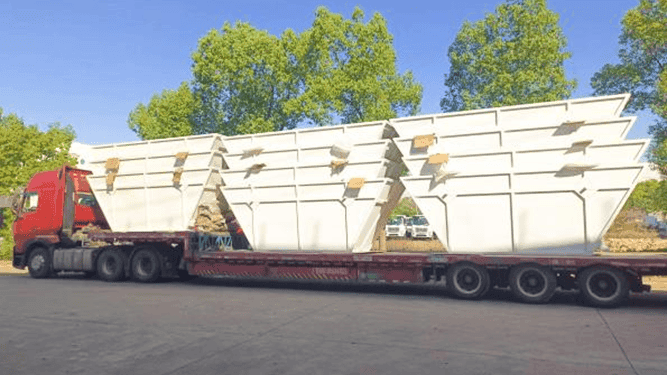

2.Waste Container: This 12-cubic-metre waste container is designed for compatibility with swing-arm refuse collection vehicles. Built with reinforced carbon steel structure (4 mm side walls and 5 mm base) and protected by an epoxy zinc-rich primer, it offers enhanced durability and corrosion resistance. The large capacity reduces transport frequency, while its standardised coupling ensures quick and secure attachment to the vehicle’s swing arm, improving overall operational efficiency.
3.Outriggers: The outriggers are an essential safety and stability system for swing-arm refuse trucks. All four hydraulic supports must be extended before loading or unloading to stabilize the vehicle against tipping forces during container lifting. Once operations are complete, they are retracted to allow normal travel, forming the critical foundation for safe and stable operation.

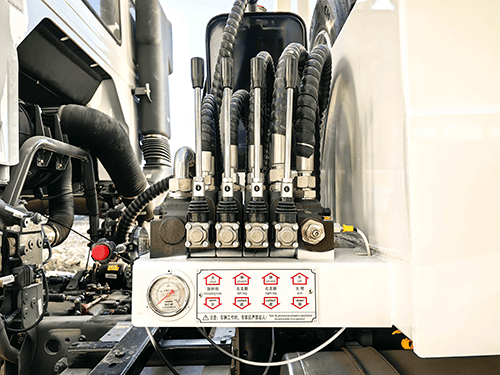

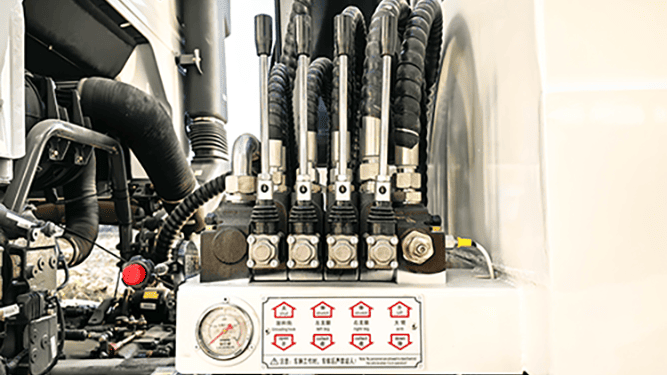

4.Control System：The operating system of the swing-arm refuse truck functions as a centralized control hub. Using an ergonomic multi-valve joystick or button panel, the operator can safely and sequentially command all movements of the outriggers and swing arm. This user‑focused design allows a single operator to carry out the complete collection and transport cycle both efficiently and safely.
5. Efficient Ground-Level Operations
The swing arm enables ground-level loading and unloading of refuse bins, reducing physical strain on operators and speeding up the waste collection process.
